Installing Veeam Backup and Replication

In this post we will be installing the Backup and Replication server components. This is a fairly straight forward installation with very minimal setup steps after installation to get started using it. Of course there are many advanced setup scenarios that you can build which would require much more setup time. I will go into those on another post soon.

First off read the minimum requirements and FAQ here.

Or just read below for the hardware requirements which were copied from the above pdf.

Hardware Requirements

Veeam Backup & Replication Server

• CPU: any x86/x64 processor.
• Memory: 4 GB RAM.
• Hard Disk Space: 2 GB for product installation. 10 GB per 100 VM for guest file system catalog folder (persistent data). Sufficient free disk space for Instant VM Recovery cache folder (non-persistent data, at least 10 GB recommended).
• Network: 1 Gbps LAN for on-site backup and replication, 1 Mbps or faster WAN for off-site backup and replication. High latency links are supported, but TCP/IP connection must not drop.

Backup Proxy Server

• CPU: modern x86/x64 processor (minimum 2 cores). Using faster multi-core processors improves data processing performance, and allows for more concurrent jobs.
• Memory: 2 GB RAM per concurrent job. Using faster memory (DDR3) improves data processing performance.
• Hard Disk Space: 300 MB.
• Network: 1 Gbps LAN for on-site backup and replication, 1 Mbps or faster WAN for off-site backup and replication. High latency links are supported, but TCP/IP connection must not drop.

Backup Repository Server

• CPU: any x86/x64 processor.
• Memory: 2 GB RAM per concurrent job.
• Network: 1 Gbps LAN for on-site backup and replication, 1 Mbps or faster WAN for off-site backup and replication. Unreliable, high latency links with packet loss are supported, but TCP/IP connection must not drop completely.

Installation

In this scenario we will be using a Windows 2008 R2 x64 server to install on.

Let’s get started.

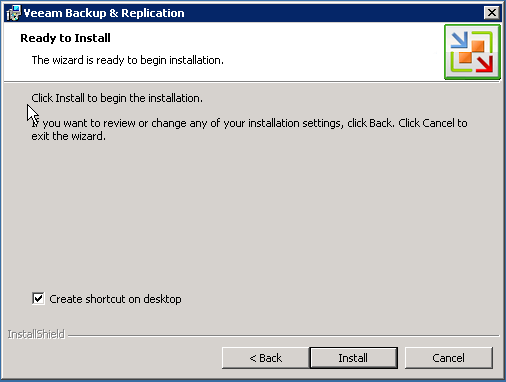

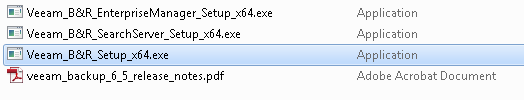

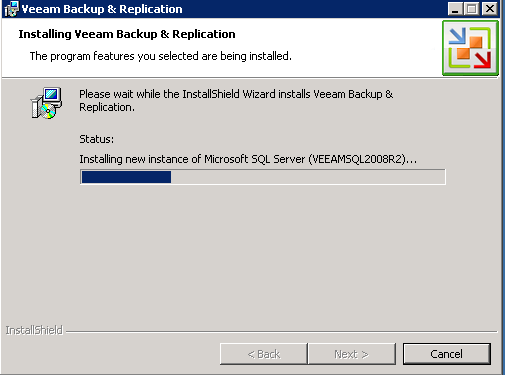

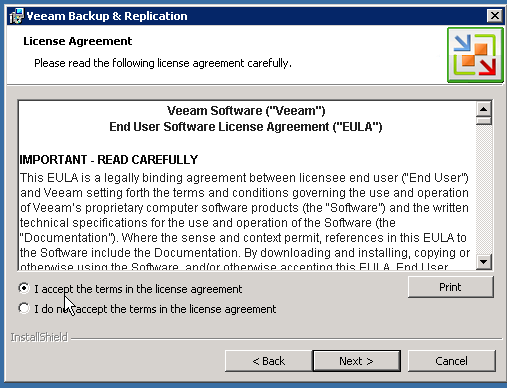

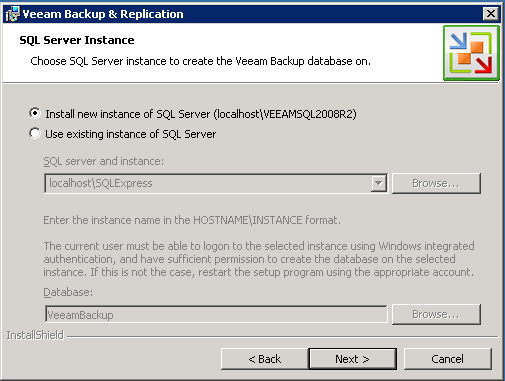

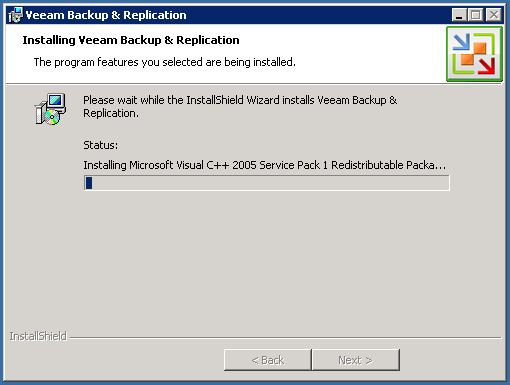

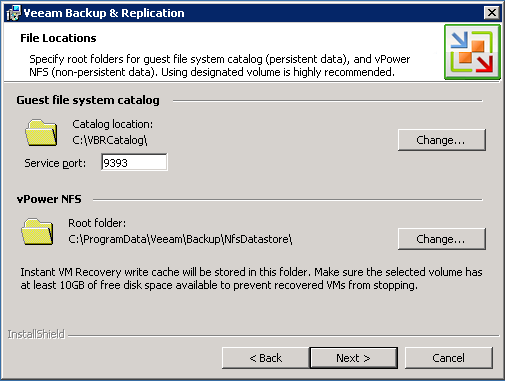

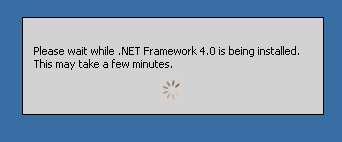

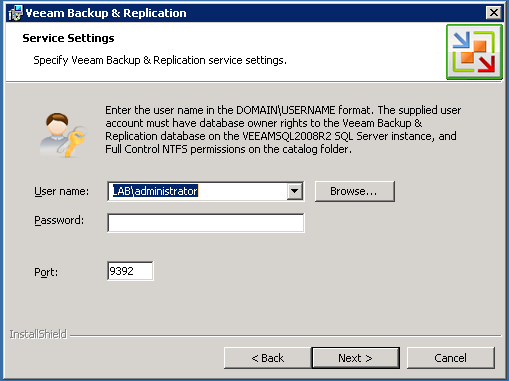

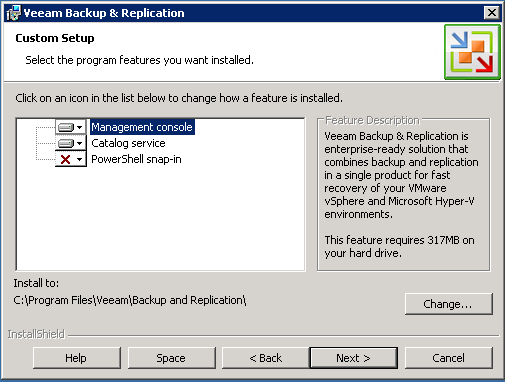

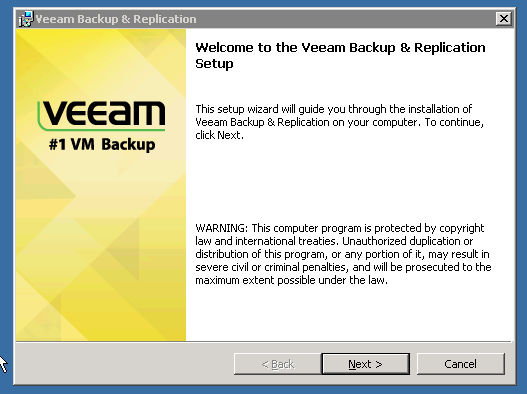

Launch installation program:

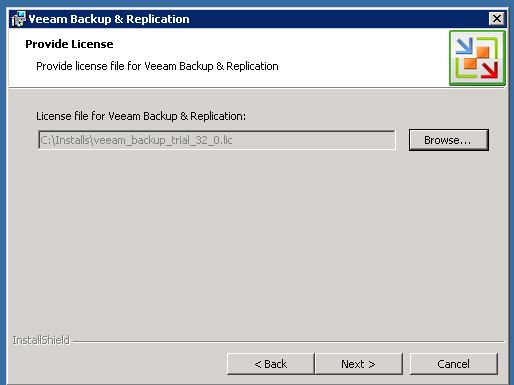

Download and browse to your trial license file.

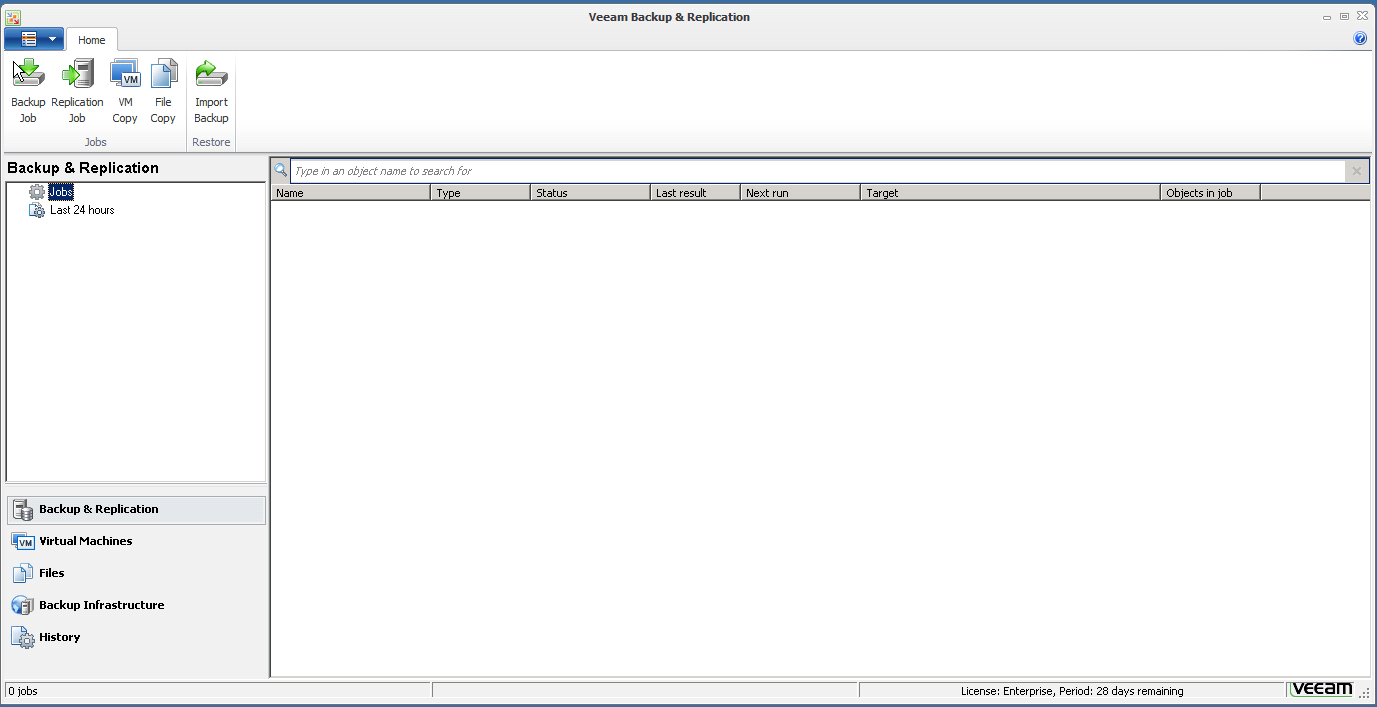

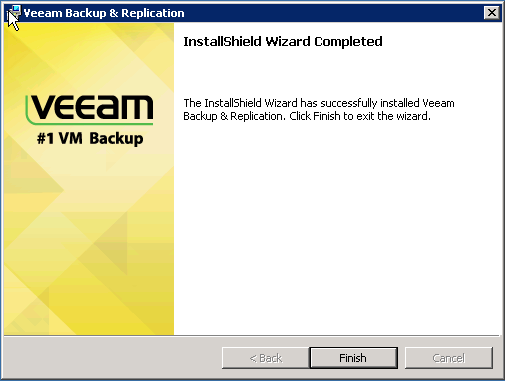

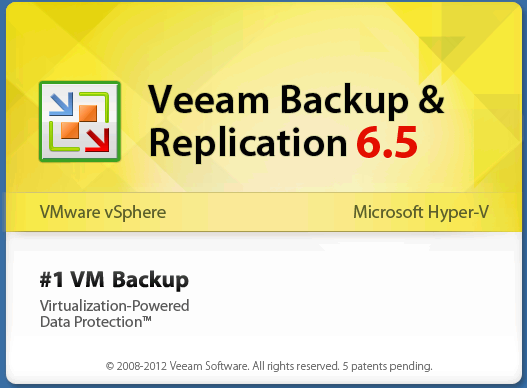

Now that the installation is complete launch the app.

Configuring Your First Backup Job

Now we will configure our first backup job to run.

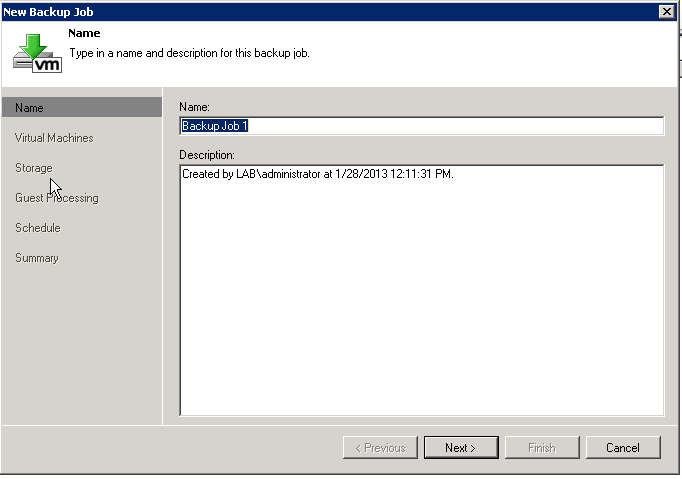

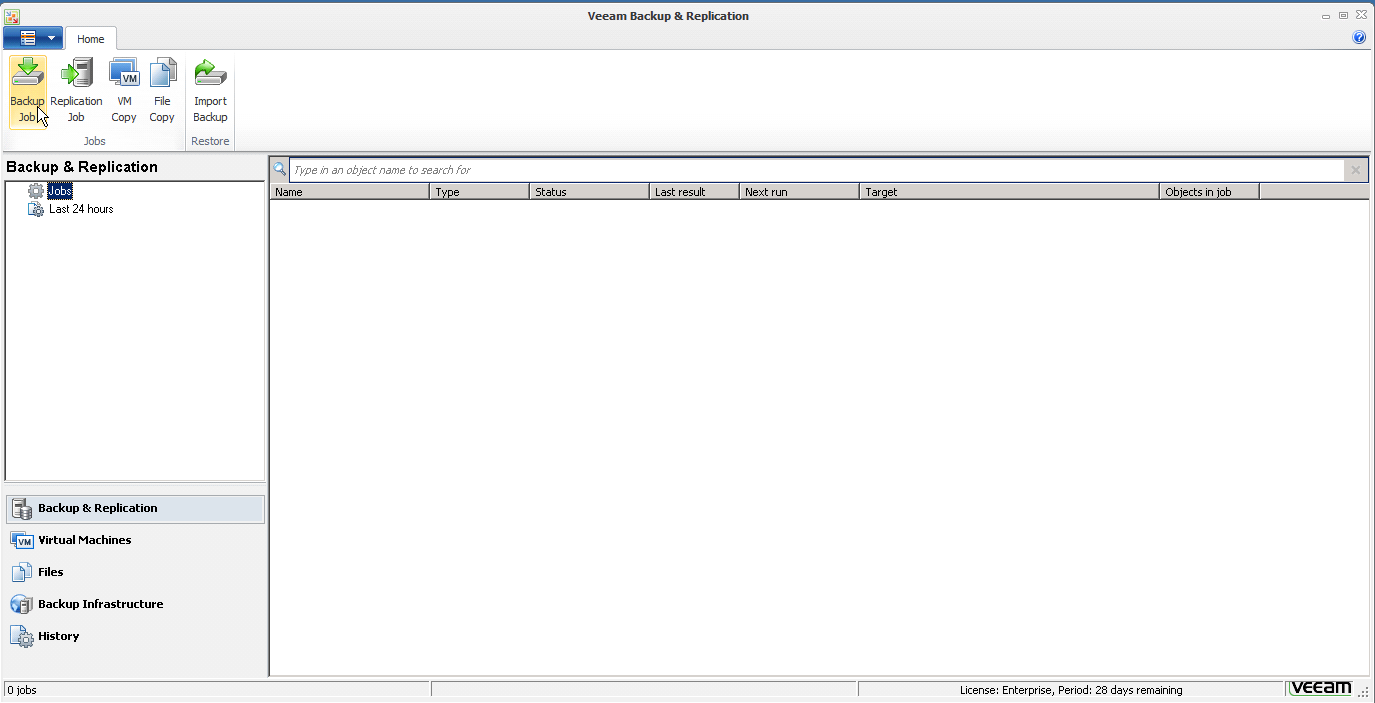

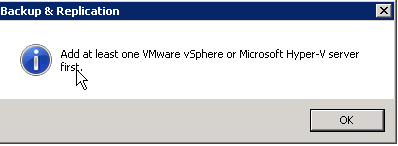

Click backup job.

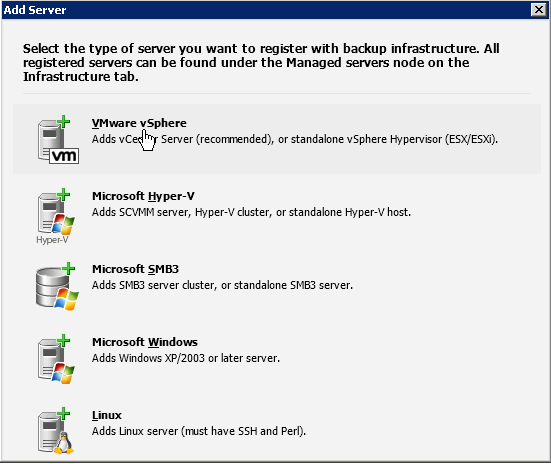

Click on VMware vSphere:

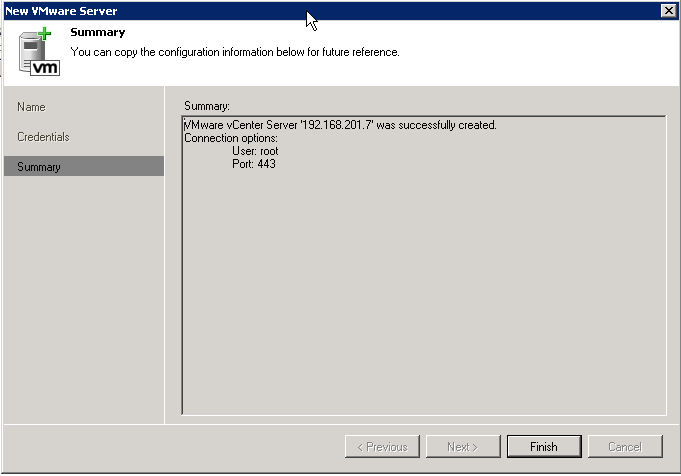

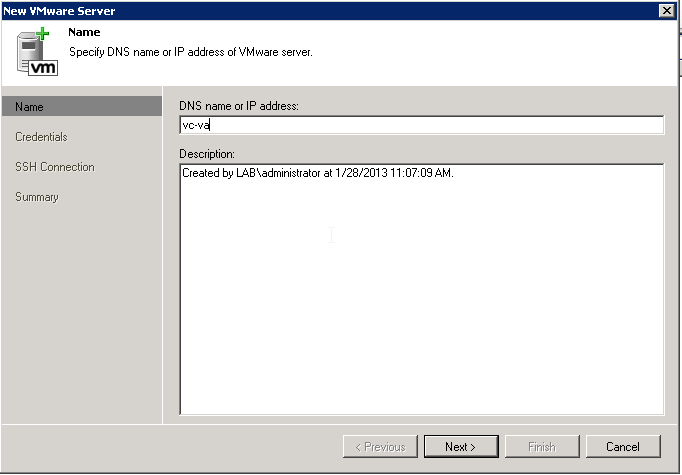

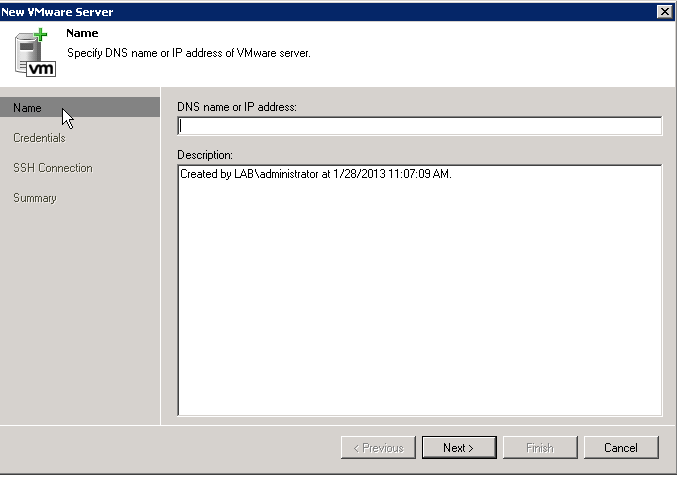

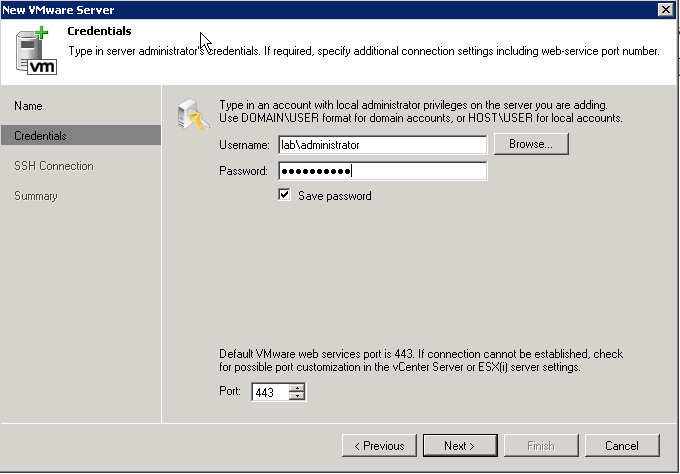

Enter IP or DNS name for host or enter your vCenter info.

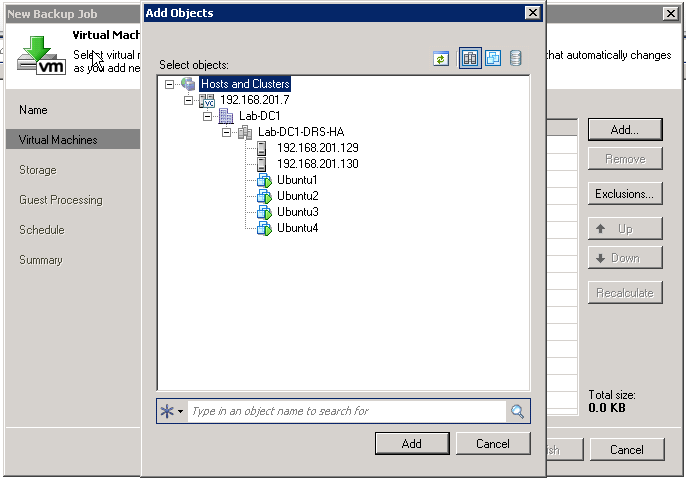

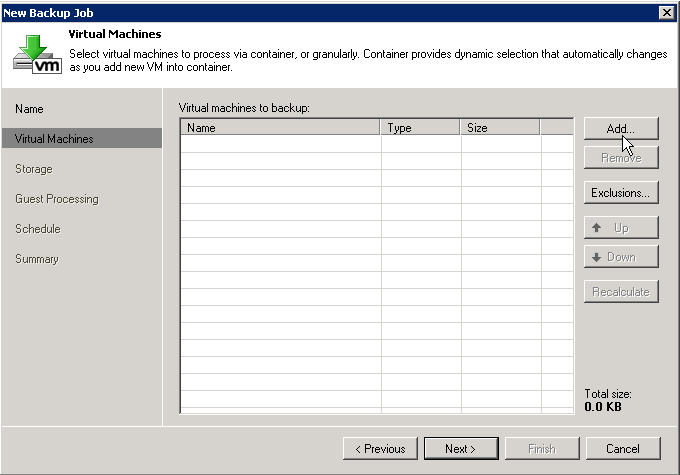

Click add to select which virtual machines you would like to backup.

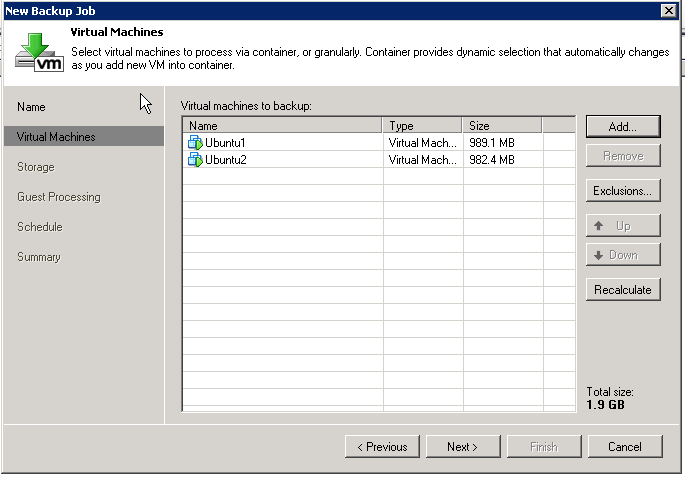

When adding objects to backup you can select data center, cluster, hosts, folders, resource pools, datastores or individual virtual machines. Make sure that you layout your different objects in vCenter to whatever makes sense and makes this selection process the easiest and cleanest as well as something that will capture the virtual machines even if they move between any of these objects.

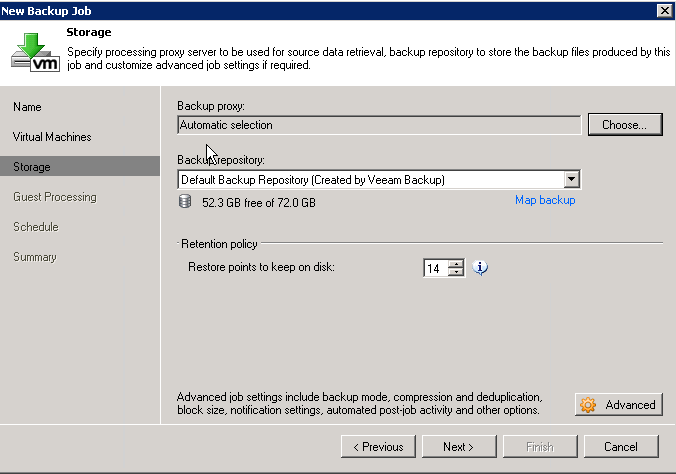

Select your backup repository you want to backup to. For information on adding a Linux NFS backup repository read this article.

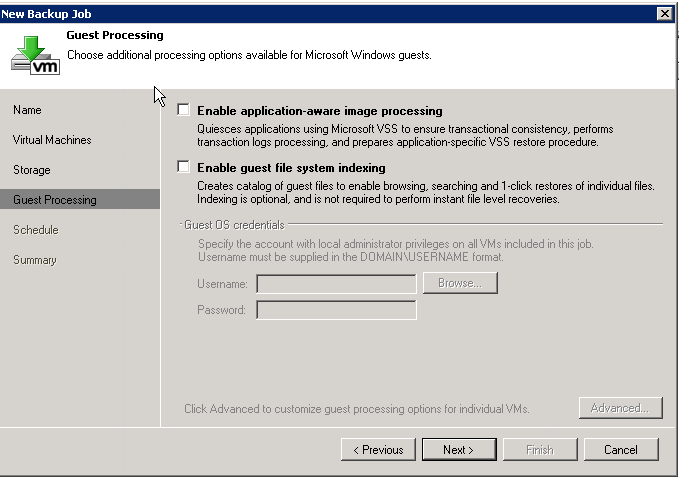

Select Enable application-aware image processing for servers such as Exchange or MS SQL and any other application that uses VSS technology.

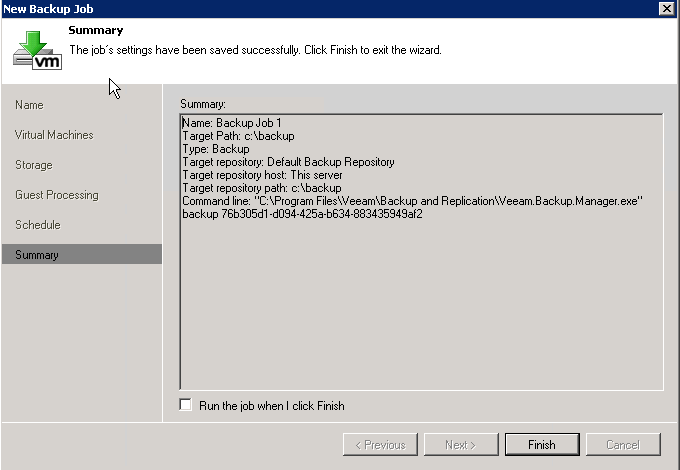

That’s all there is to it. Now you are ready to start your backups. More posts will follow going over file level restores, full vm restores and etc. As well as on replication scenarios.

Feel free to leave comments as I look forward to any and all feedback.
