Ansible - RabbitMQ Cluster

3 minute read

UPDATE: As of 08/06/2015 the following role can be found here on Ansible Galaxy. The below information was updated based on this new role available at the above link and verified to work..However, this information below may be out of date so please grab the latest role from the Ansible Galaxy link above.

In this post I will be setting up a clustered RabbitMQ environment for logstash message queuing. Again I will be keeping this short and sweet. This might come in use for someone else as well. This setup will join each node to the cluster, setup a logstash exchange and logstash queue and then also configure the binding between our logstash exchange and logstash queue. It will also configure the ha-policy to spread the queue across all nodes and sync them automatically.

We will be starting with the following group_vars/app to setup our variables..Make sure to adjust to fit the needs of your environment…

config_rabbitmq_ha: true
enable_rabbitmq_clustering: true
erlang_cookie: LSKNKBELKPSTDBBCHETL
rabbitmq_config:
  - queue_name: logstash
    durable: true
    exchange_name: logstash
    type: fanout
    routing_key: logstash
    tags: 'ha-mode=all,ha-sync-mode=automatic'
rabbitmq_master: ans-test-1

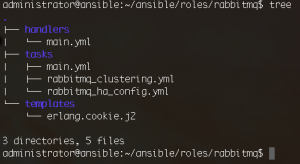

Within our roles tree for rabbitmq it looks like below Screen Shot 2015-04-13 at 9.32.12 AM

Below will be the contents of each file within the tree from the screenshot above.

handlers/main.yml:

---
- name: restart rabbitmq-server
  service: name=rabbitmq-server state=restarted

tasks/main.yml:

---
- include: debian.yml
  when: ansible_os_family == "Debian"

- name: checking to see if already clustered
  stat: path=/etc/rabbitmq/clustered
  register: clustered

- include: rabbitmq_clustering.yml
  when: enable_rabbitmq_clustering and (clustered.stat.exists != True)

- include: rabbitmq_ha_config.yml
  when: config_rabbitmq_ha and enable_rabbitmq_clustering

tasks/debian.yml:

---
- name: debian | adding RabbitMQ public GPG key to the apt repo
  apt_key: url=http://www.rabbitmq.com/rabbitmq-signing-key-public.asc state=present

- name: debian | adding RabbitMQ repo
  apt_repository: repo='deb http://www.rabbitmq.com/debian/ testing main' update_cache=no state=present

- name: debian | installing RabbitMQ server
  apt: name= state=present
  with_items:
    - rabbitmq-server

- name: debian | enabling the RabbitMQ Management Console
  rabbitmq_plugin: names=rabbitmq_management state=enabled
  notify: restart rabbitmq-server

- name: debian | ensuring that the RabbitMQ service is running
  service: name=rabbitmq-server state=started enabled=yes

tasks/rabbitmq_clustering.yml:

---
- name: rabbitmq_clustering | stopping rabbitmq app
  command: rabbitmqctl stop_app

- name: rabbitmq_clustering | resetting rabbitmq app
  command: rabbitmqctl reset

- name: rabbitmq_clustering | stopping rabbitmq-server
  service: name=rabbitmq-server state=stopped

- name: rabbitmq_clustering | copy erlang cookie
  template: src=erlang.cookie.j2 dest=/var/lib/rabbitmq/.erlang.cookie owner=rabbitmq group=rabbitmq mode=0400 backup=yes

- name: rabbitmq_clustering | restarting rabbitmq-server on master
  service: name=rabbitmq-server state=restarted
  when: inventory_hostname == "{{ rabbitmq_master }}"

- name: rabbitmq_clustering | starting rabbitmq app on master
  command: rabbitmqctl start_app
  register: cluster_master
  when: inventory_hostname == "{{ rabbitmq_master }}"

- name: rabbitmq_clustering | sending sigterm to any running rabbitmq processes
  shell: pkill -u rabbitmq || true
  when: inventory_hostname != "{{ rabbitmq_master }}"

- name: rabbitmq_clustering | restarting rabbitmq-server
  service: name=rabbitmq-server state=restarted
  when: inventory_hostname != "{{ rabbitmq_master }}"

- name: rabbitmq_clustering | stopping rabbitmq app
  command: rabbitmqctl stop_app
  when: inventory_hostname != "{{ rabbitmq_master }}"

- name: rabbitmq_clustering | resetting rabbitmq app
  command: rabbitmqctl reset
  when: inventory_hostname != "{{ rabbitmq_master }}"

- name: rabbitmq_clustering | joining rabbitmq cluster
  command: rabbitmqctl join_cluster 'rabbit@{{ rabbitmq_master }}'
  register: cluster_joined
  when: inventory_hostname != "{{ rabbitmq_master }}"

- name: rabbitmq_clustering | starting rabbitmq app
  command: rabbitmqctl start_app
  when: inventory_hostname != "{{ rabbitmq_master }}"

- name: rabbitmq_clustering | marking as clustered
  file: path=/etc/rabbitmq/clustered state=touch
  when: cluster_master.changed or cluster_joined.changed

tasks/rabbitmq_ha_config.yml:

---
- name: rabbitmq_ha_config | install rabbitMQ admin
  shell: wget http://guest:guest@localhost:55672/cli/rabbitmqadmin

- name: rabbitmq_ha_config | moving the rabbitMQ Admin
  shell: mv rabbitmqadmin /usr/sbin

- name: rabbitmq_ha_config | making executable rabbitMQ Admin
  shell: chmod +x /usr/sbin/rabbitmqadmin
  notify: restart rabbitmq-server

- name: rabbitmq_ha_config | creating queue(s)
  command: rabbitmqadmin declare queue name={{ item.queue_name }} durable={{ item.durable|lower }}
  run_once: true
  with_items: rabbitmq_config

- name: rabbitmq_ha_config | setting up ha on queue(s)
  rabbitmq_policy: name='ha-all' pattern='{{ item.queue_name }}' tags="{{ item.tags }}" state=present
  run_once: true
  with_items: rabbitmq_config

- name: rabbitmq_ha_config | creating exchange(s)
  command: rabbitmqadmin declare exchange name={{ item.exchange_name }} type={{ item.type }}
  run_once: true
  with_items: rabbitmq_config

- name: rabbitmq_ha_config | creating binding(s)
  command: rabbitmqadmin declare binding source={{ item.exchange_name }} destination_type="queue" destination={{ item.queue_name }} routing_key={{ item.routing_key }}
  run_once: true
  with_items: rabbitmq_config

templates/erlang.cookie.j2:

{{ erlang_cookie }}

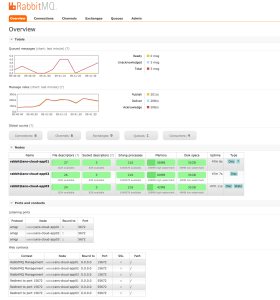

When you are all done this is what you should see in your RabbitMQ web management UI.

Screen Shot 2015-04-13 at 9.41.31 AM

And there you have it. You now have a highly available RabbitMQ cluster all setup by Ansible.

Enjoy!
